Products >> PVC SUCTION HOSE >>

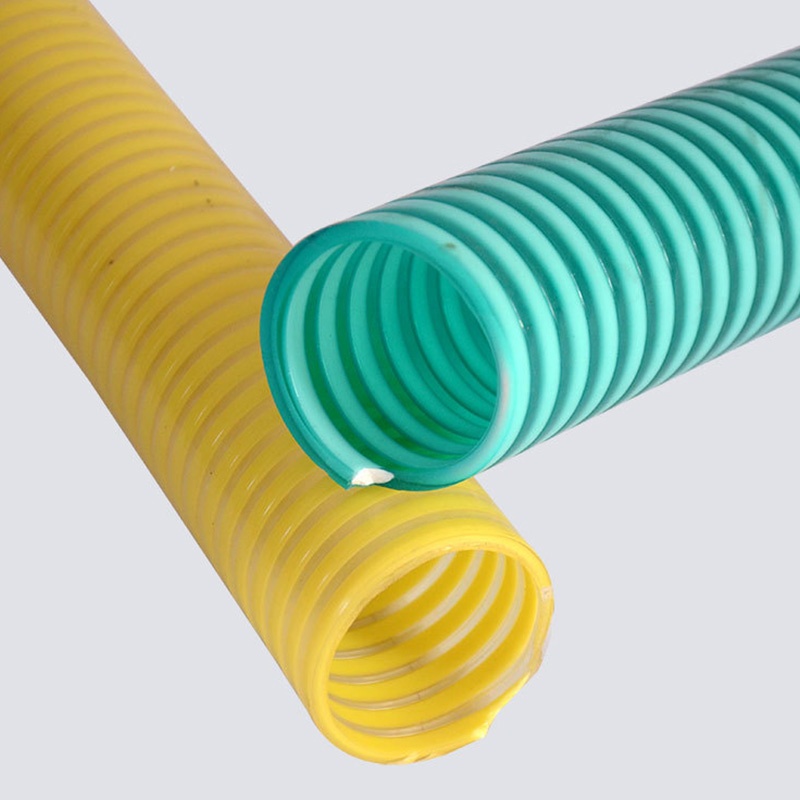

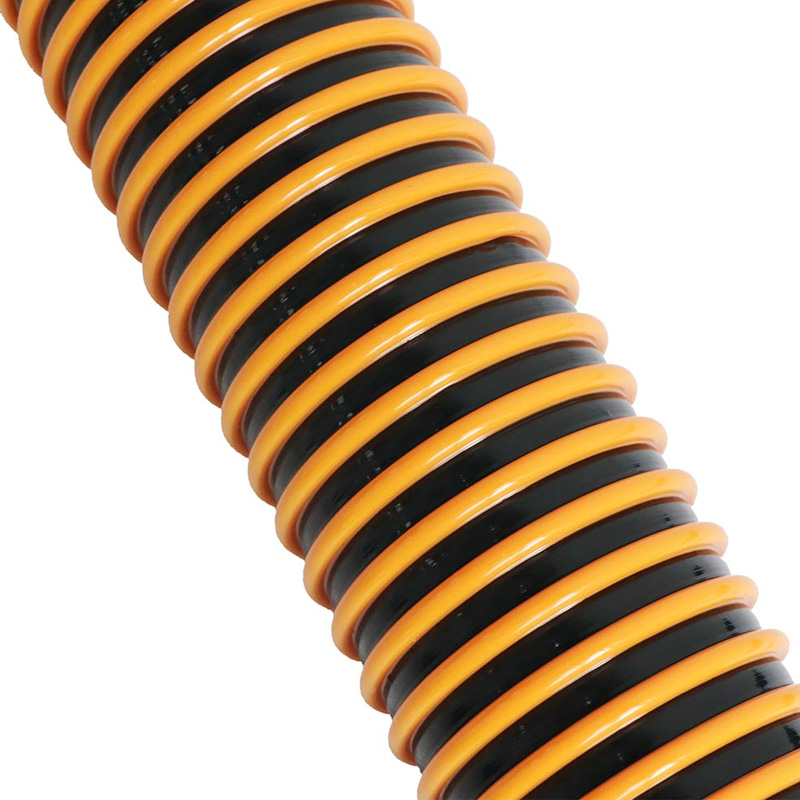

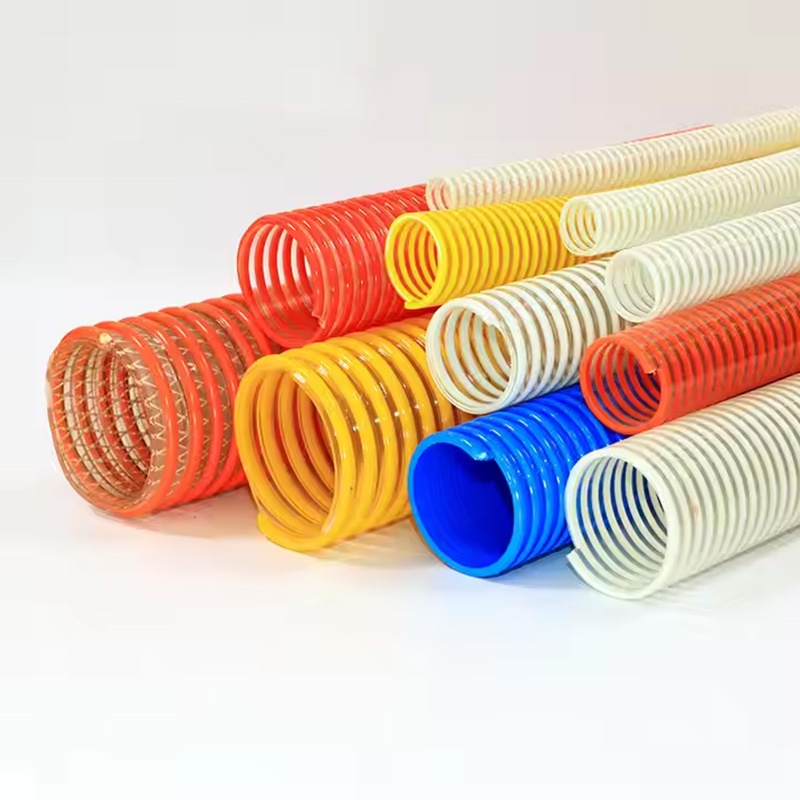

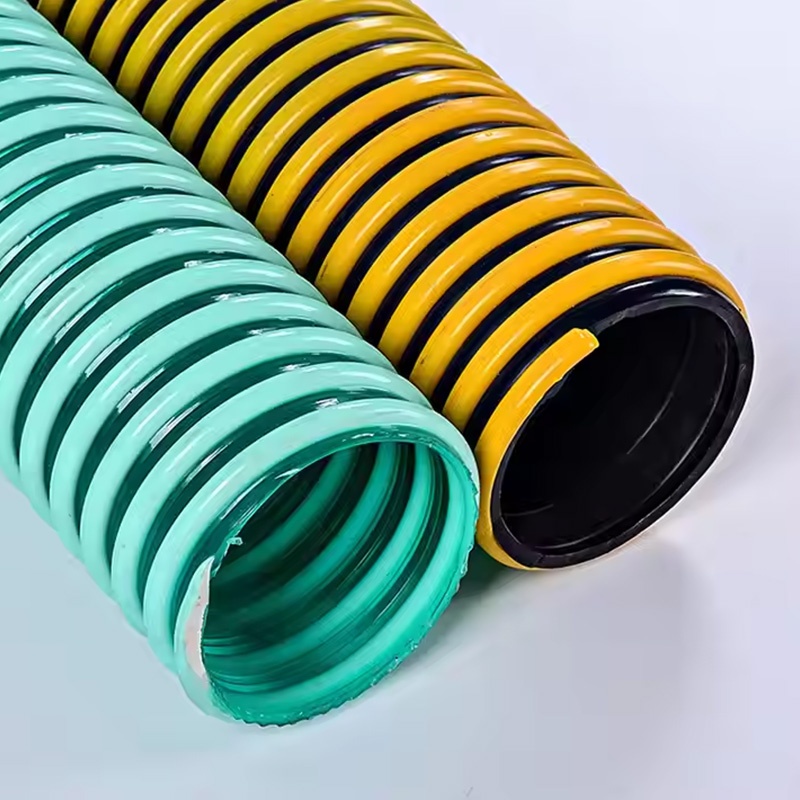

PVC SUCTION HOSE

Product No.：202543091358
Online Inquiry

PVC Suction Hose is also called grit suction hose, cement PVC suction hose, quarry PVC suction hose, etc.

Quick details

Model NO.	PVC suction hose
Usage	Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Thickness	3mm-12mm
Length	10m/20m/30m/40m/50m
Working Pressure	3bar-10bar
Working Temperature	-10ºC - 65ºC
Features	Abrasion and Chemical Resistant, Impact and Crush
Transporting Medium	Liquid, Powder, Granules,Grit, Cement,Quarry,Slurries,Sewage, etc
Quality Grade	No Toxic Industrial Grade
Connection	Camlock, Kc Nipple, Hose Mender, Bauer, Storz, Pin

Application	Industry, Agriculture and Construction
Reinforced Material	Integral Helix Rigid PVC
Trademark	Sflex or OEM
Transport Package	Woven Plastic Cloth Wrapped
Specification	3/4"-8"
Origin	Shandong, China (Mainland)
HS Code	39173900
Color	As request

Application

This Spiral Suction Hose is widely used for heavy duty suction and delivery of water, sewage, oil, greases, debris, gravels in construction buildings, mining industries, water pump industries, and other general industry applications. This kind of suction hose can be used for collection of waste on environmental waste trucks, pumping the contents of grease pits, sewage collection, lubricants and most light chemicals.

Structure

Rigid PVC helix reinforced anti-shock spiral, abrasion-proof surface

Characteristics

Corrugated surface make the hose with good abrasion resistance.
Rigid helix reinforcement, long service life.

Crush resistant, oil and weather resistant, UV resistant.

Production and packing

The products are wrapped by plastic woven cloth and be fixed with ropes or packing straps. Detailed packing can be according to your requirement.

Specifications of PVC Sand Blast PVC Suction Hose

The chart is only for reference, we can make any inside diameter and thickness as customer requirement.

Such as 19x24mm, 19x25mm,19x26mm, 19x26.5mm, etc.

Inner Diameter		Outer Diameter		Weight	W.P.(at 23ºC)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
3/4	19	0.984	25	0.28	8	120	50	150
1	25	1.26	32	0.38	8	120	50	150
1-1/4	32	1.535	39	0.45	7	100	50	150
1-1/2	38	1.85	47	0.7	7	100	50	150
2	51	2.402	61	1.1	6	90	50	150
2-1/2	64	2.913	74	1.3	6	90	30	90
3	76	3.386	86	1.7	5	75	30	90
4	102	4.567	116	3.2	5	75	30	90
5	127	5.591	142	3.8	4	60	30	90
6	153	6.693	170	6.2	4	60	20	60
8	203	8.622	219	7	3	45	10	30
